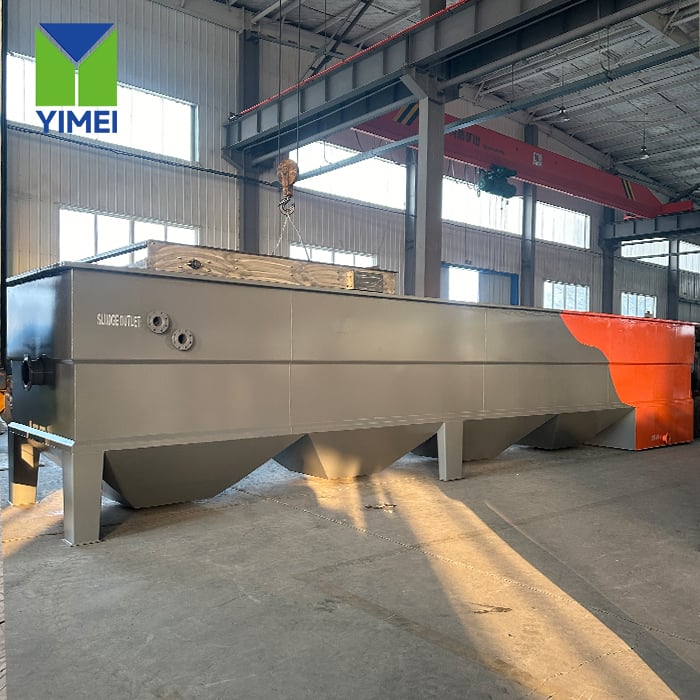

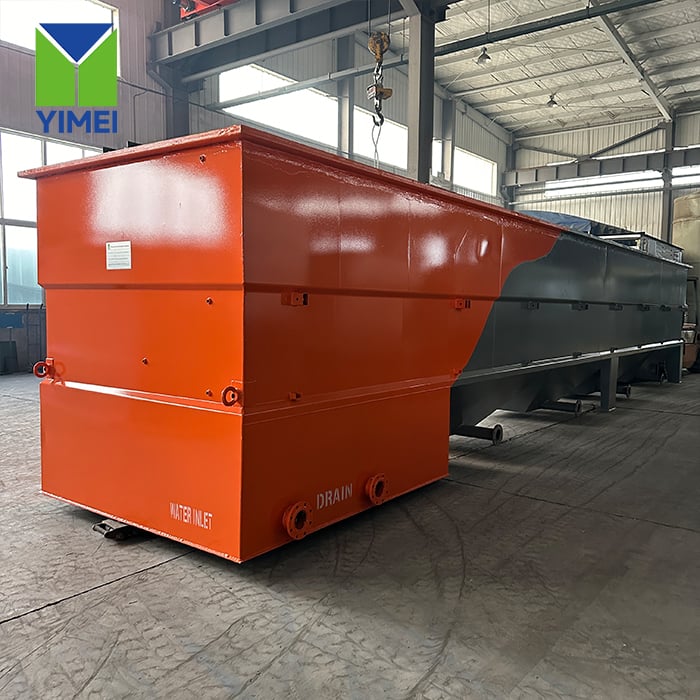

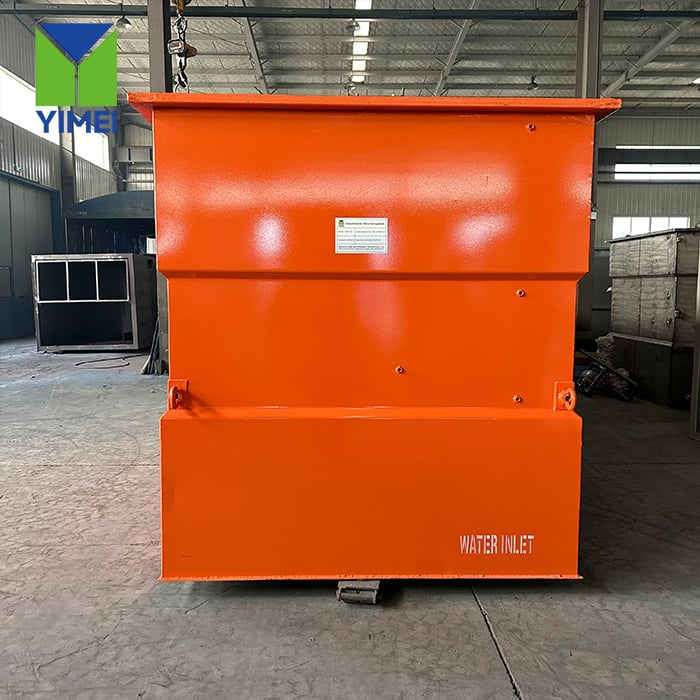

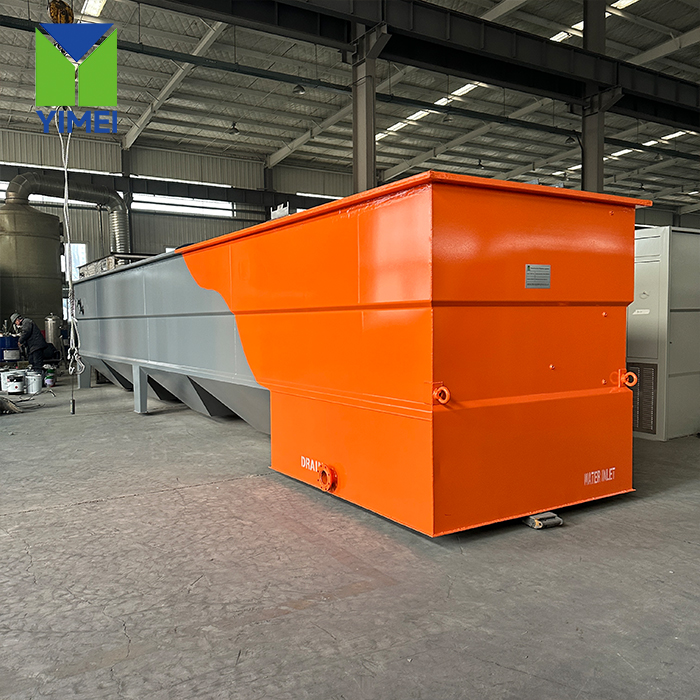

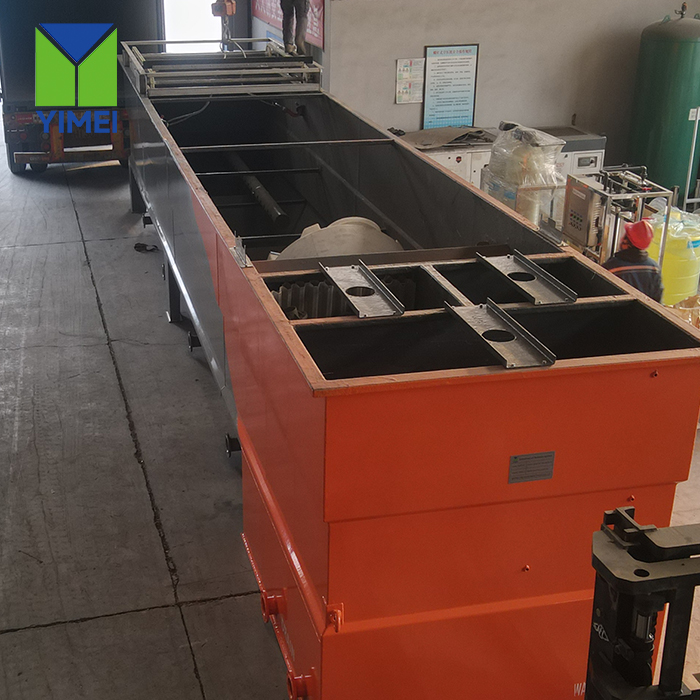

Dissolved Air Flotation Machine Water Treatment Solid-Liquid Separation Equipment Food Wastewater Manufacturing Plant Steel

Inquiry now

· Premium raw materials with quality assurance.

· Efficient purification with stable, Grade 1A effluent quality.

· Compact design for easy above-ground or underground installation.

· Fully automatic operation ensures stable performance.

  • Product Parameters
  • More Products
  • Inquiry

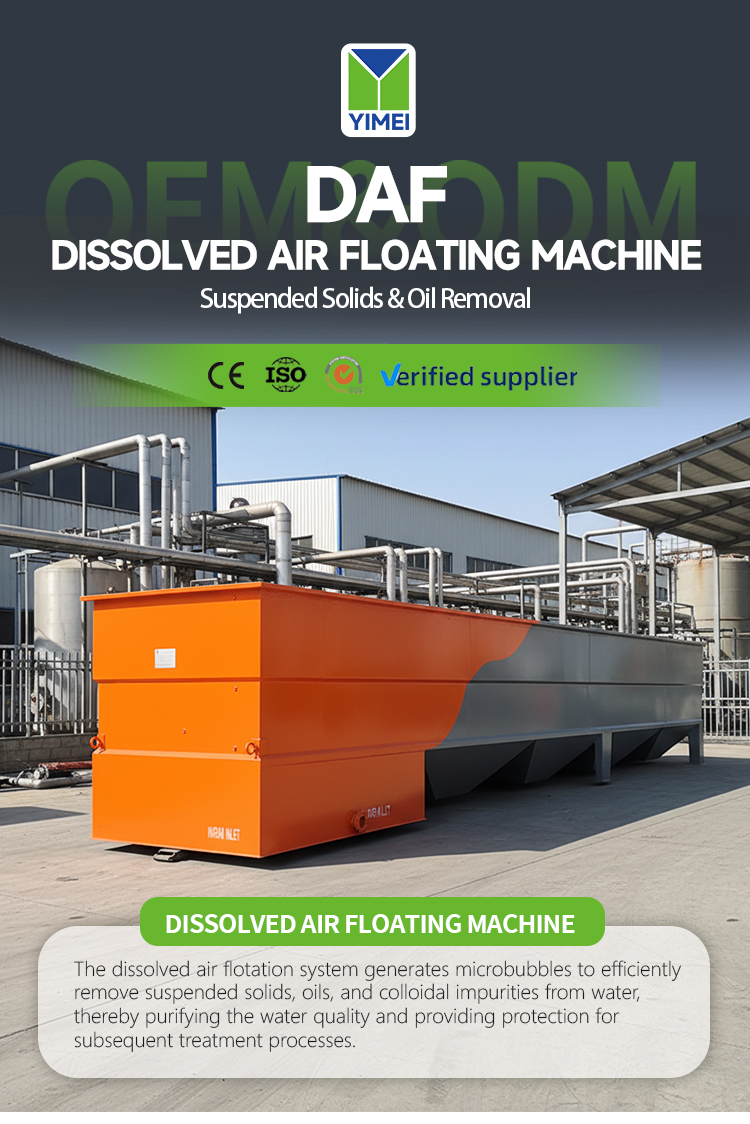

The dissolved air flotation system generates microbubbles to efficientlyremove suspended solids, oils

and colloidal impurities from water,thereby purifying the water quality and providing protection forsubsequent treatment processes.

Model list
Disposal capacity (m³/h)
Equipment size (m)
Dissolved air vessel size (mm)
Motor power (Kw)
Equipment total weight (Kg)
Length
Length
Width
Height
YMRF-1
1
1.0
0.8
1.0
Φ200×800
1.5
300
YMRF-3
3
1.7
1.2
2.0
Φ300×1000
2.2
800
YMRF-5
5
2.5
1.5
2.0
Φ300×1500
2.2
1200
YMRF-10
10
4.6
1.7
2.0
Φ400×3000
4.0
2000
YMRF-20
20
6.0
2.0
2.0
Φ400×3000
4.0
3200
YMRF-30
30
7.2
2.0
2.1
Φ500×3000
5.5
4500
YMRF-40
40
8.3
2.8
2.2
Φ500×3000
5.5
6000
YMRF-50
50
9.3
3.2
2.2
Φ600×3000
7.5
7100
YMRF-60
60
10.3
3.2
2.2
Φ600×3000
7.5
8500
YMRF-80
80
11.2
3.5
2.5
Φ800×3000
11
9000
YMRF-100
100
12.5
3.9
2.5
Φ800×3000
15
11000

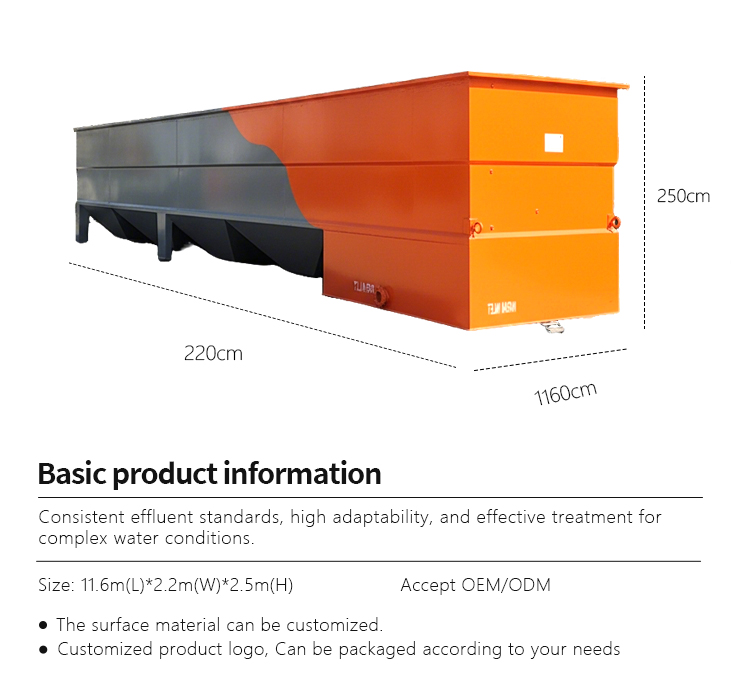

Basic product information

Consistent effluent standards, high adaptability, and effective treatment forcomplex water conditions.
Size: 11.6m(L)*2.2m(W)*2.5m(H)
Accept OEM/ODM
The surface material can be customized.
Customized product logo, Can be packaged according to your needs

Microbubble Technology, Superior CaptureGenerates
30-50um microbubbles, 10x smaller than conventional bubbles, ensuringefficient adhesion and over 90% removal rate.

High Surface Load,

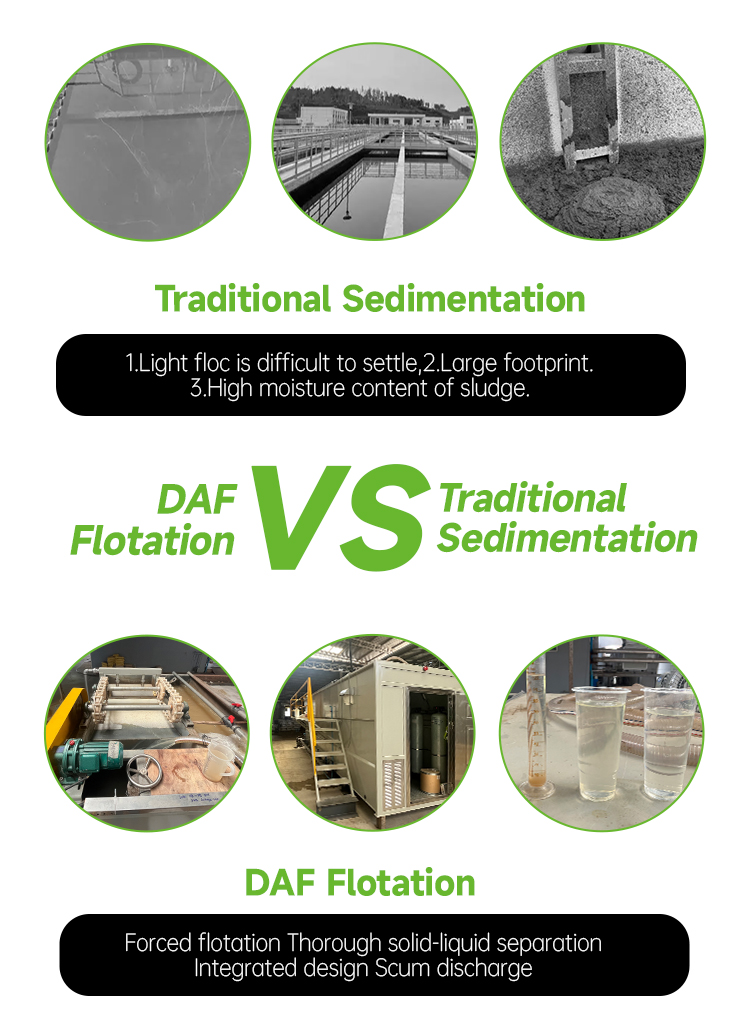

Half FootprintShort retention time and high efficiency reduce footprint by 30%-50% compared totraditional sedimentation tanks.

Low Moisture Scum,Simpler DisposalReliable skimming system produces scum with much lower moisture content, eliminatingthickening and cutting disposal costs.
Stable Operation, Strong ResilienceDesigned for fluctuating conditions with reflux system, ensuring consistent complianceunder any influent.


伊美气浮机_20.jpg伊美气浮机_13.jpg伊美气浮机_14.jpg伊美气浮机_15.jpg伊美气浮机_16.jpg伊美气浮机_17.jpg伊美气浮机_18.jpg伊美气浮机_19.jpg
