HOT Automatic polymer preparation unit chemical polymer dosing mixing flocculation system

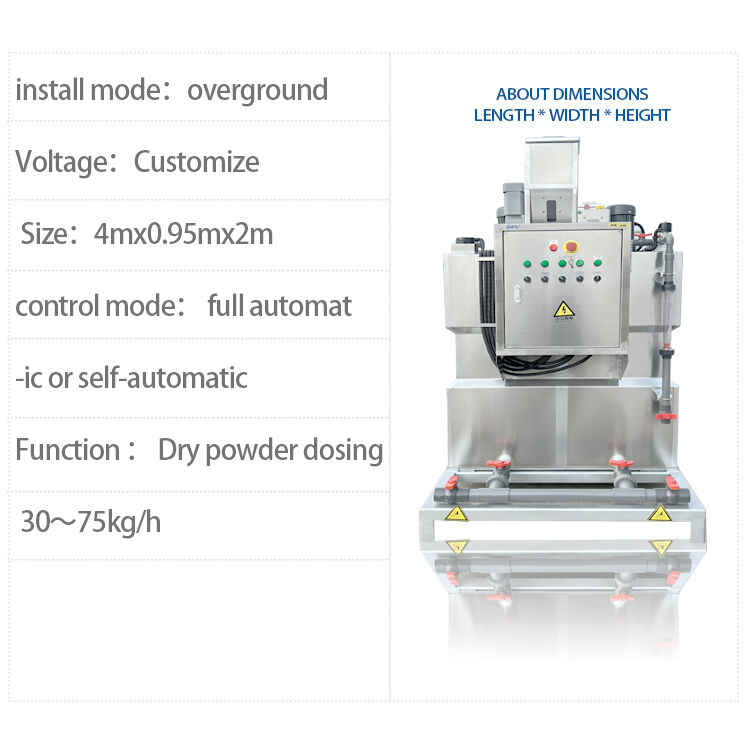

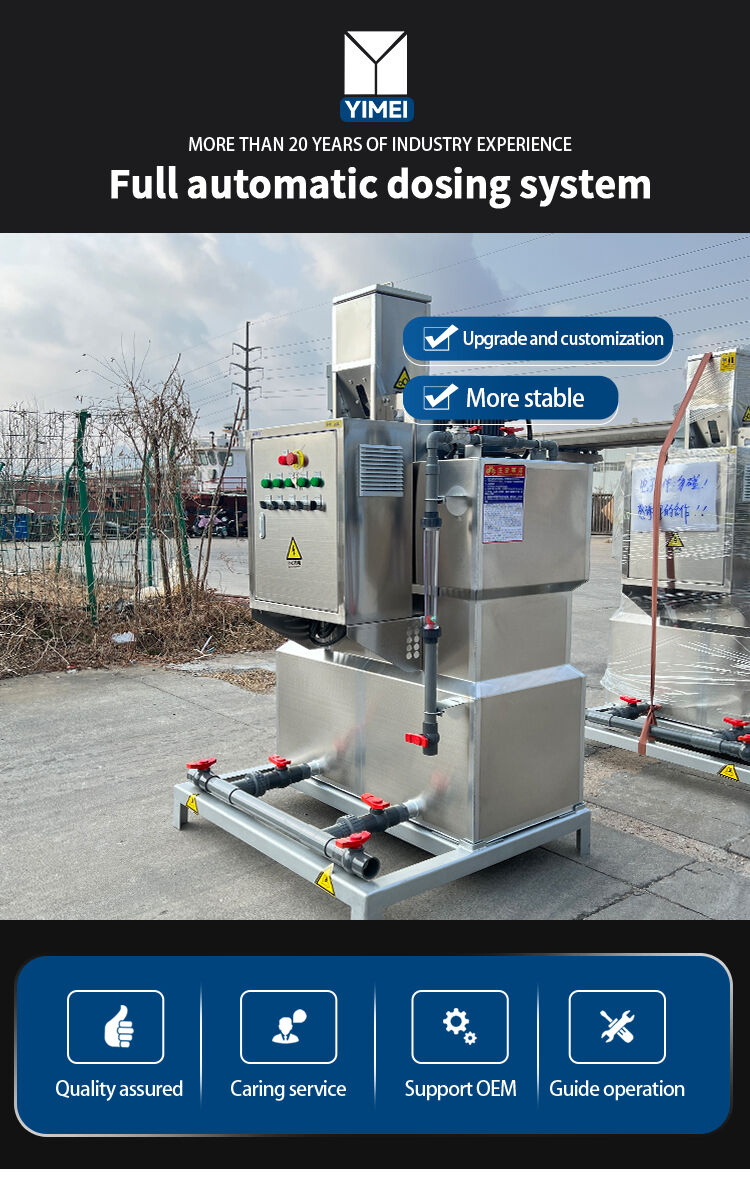

Full automatic dosing system
Product information

Working Process

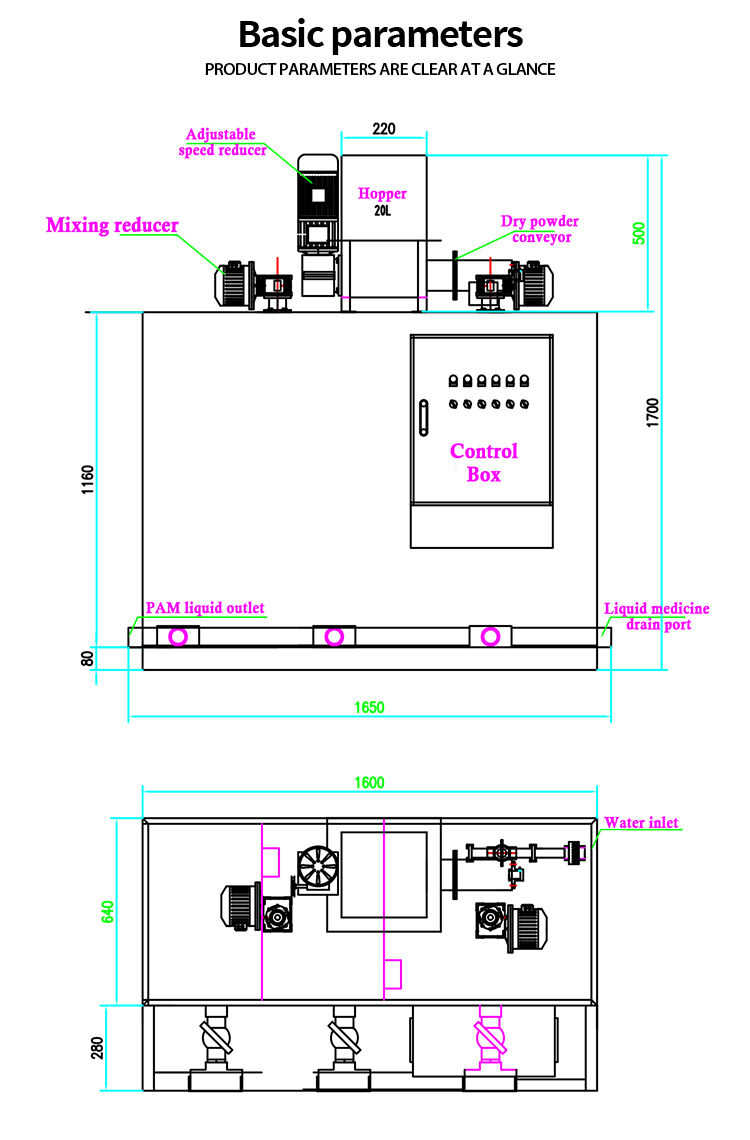

The automatic dosing device is an intelligent, fully automatic, continuous and inte-grated dry powder dissolution and dosing device. This device consists of a watersupply system, a dry powder dosing system, a dissolution and maturation system,and an automatic control system.Dry powder reagents enter the premixer from the lower part of the hopper and arepremixed with clean water. The moistened material then enters the preparation tankfor dilution and mixing, and is prepared at the concentration required by the user.The prepared solution flows from the preparation tank through the maturation tankand then into the storage tank. When the solution level drops to the low level, theautomatic batching process is started.


Feature

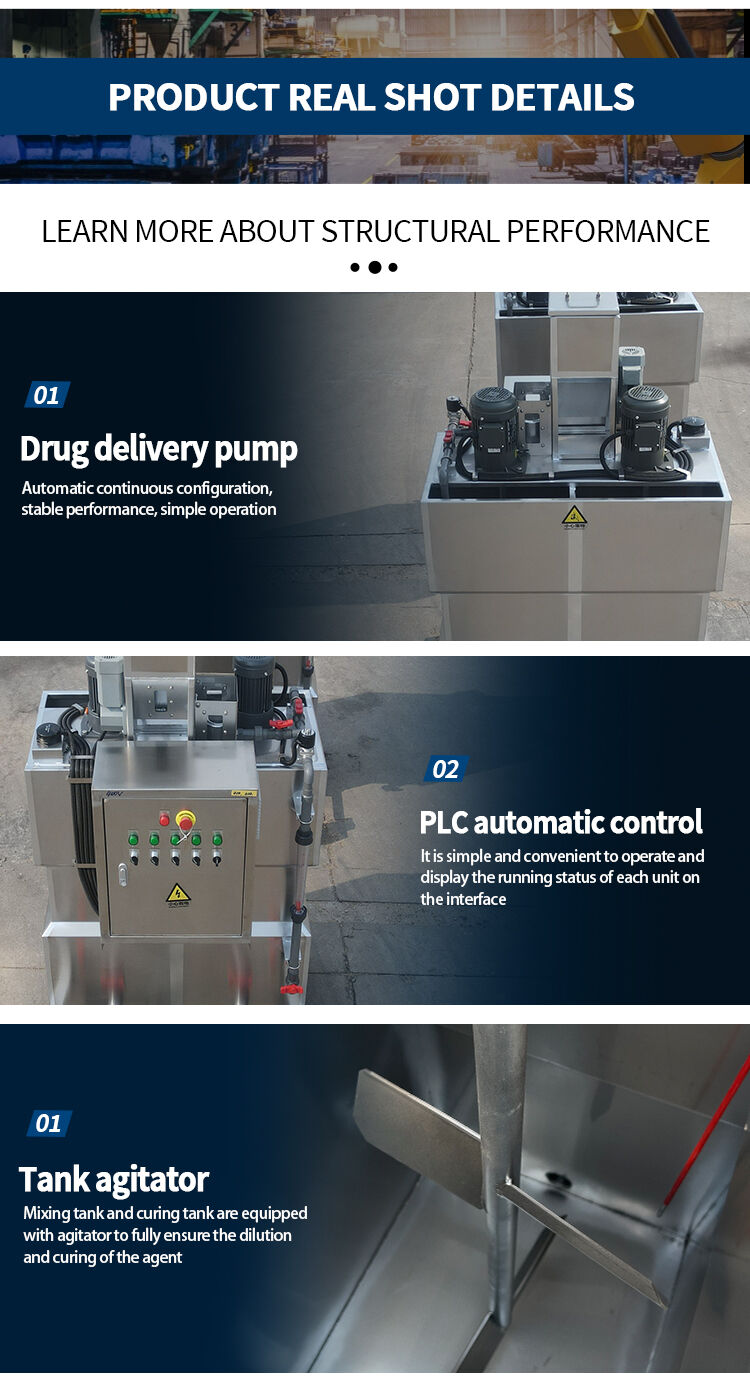

with high degree of automation, system controlled by PLC, operation on the interface and display units operating state, with intuitive man-machine interface,
simple and convenient operation.system stable and reliable
when has fault related equipment will automatically stop as required.

Adopting spiral feeder dosing powder, speed closed-loop control, ensure uniform feeding, scattered, precision within 1%
Under prescribed conditions of production and continuous cast liquid, the mixture solution of ripening time guarantee in 2 hours.
The mixture concentration was 0.05% - 0.05%;Tank body adopt SS304、PP material etc.

Operating system adopts three tank overflow solution, has simple structure, small volume, convenient installation.
Apply continuous dissolution and continuous dosing medicament environment.
The mixer adopts special design of multistage blade structure.
Premixed accelerate the hydration of powder, can adjust the flow conditions.

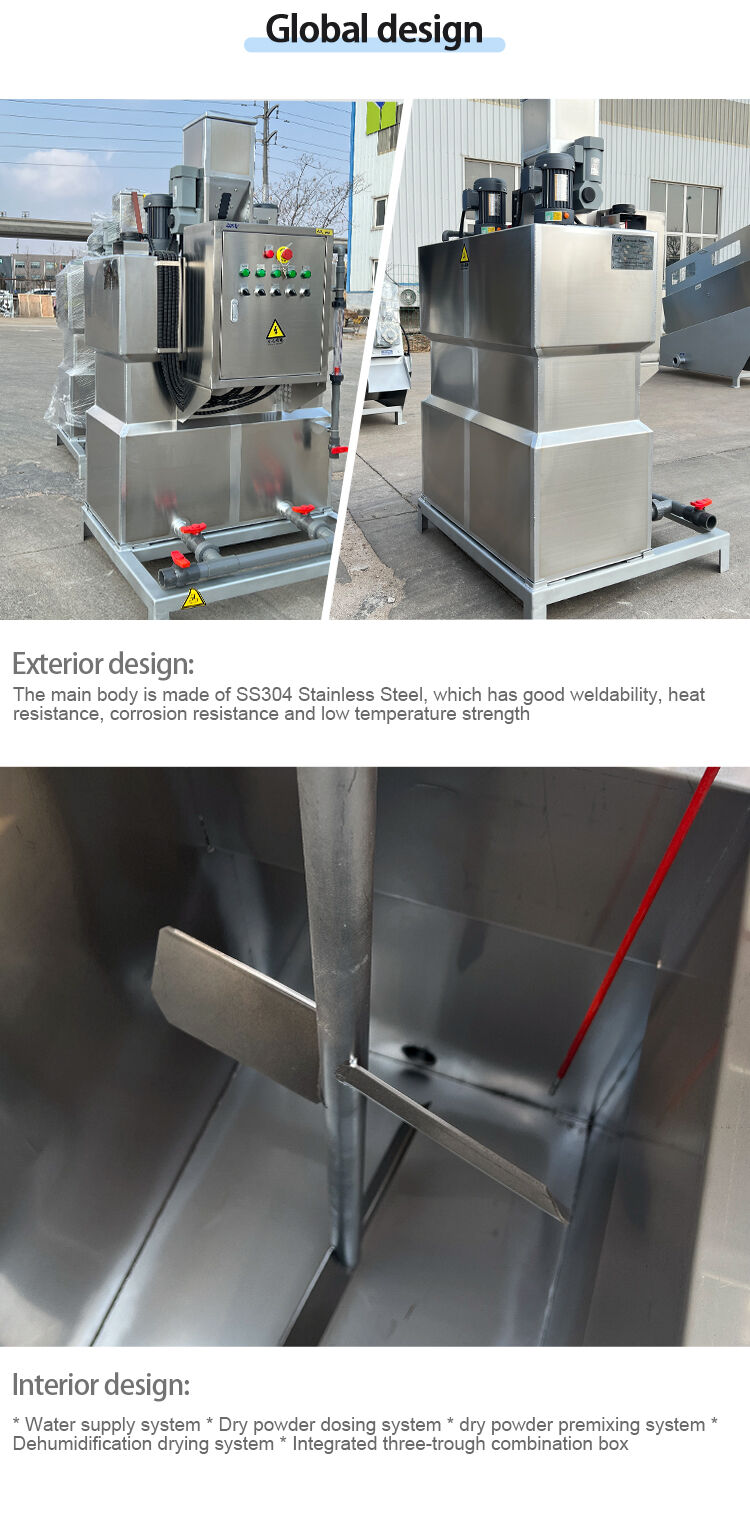

Exterior design:
The main body is made of SS304 Stainless Steel, which has good weldability, heatresistance, corrosion resistance and low temperature strength

Interior design:
* Water supply system * Dry powder dosing system * dry powder premixing system*Dehumidification drying system * Integrated three-trough combination box
